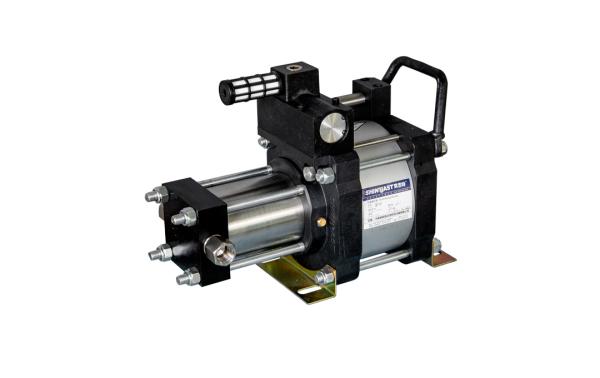

Air Driven LPG Pump for Recharge LPG Cylinder

Air Driven LPG Pump for Recharge LPG Cylinder

SHINEEAST G4-FL and GD4-FL Model Air Driven LPG Pump is especially designed for pumping LPG, and charging up LPG cylinders.

Technical parameters of G4-FL LPG Pump:

Product nameG4-FL Air Driven LPG Pump
Pressure ratio4:1
Max.outlet pressure32 bar
Drive air pressure3-8 bar
Max. output flow7 litre/min
Drive air inlet connectionPT1/2’’
Gas inlet connectionNPT1/2’’
Gas outlet connectionNPT1/2’’
Air drive pressure3-8 bar
Noise<75dB

Technical parameters of GD4-FL LPG Pump:

Product nameGD4-FL Air Driven LPG Pump
Pressure ratio4:1
Max.outlet pressure32 bar
Drive air pressure3-8 bar
Max. output flow15 litre/min
Drive air inlet connectionPT1/2’’
Gas inlet connectionNPT1/2’’
Gas outlet connectionNPT1/2’’
Air drive pressure3-8 bar
Noise<75dB
