Air Driven Refrigerant Pumps

Air Driven Refrigerant Pumps

SHINEEAST Refrigerant pumps are suitable for transferring R22, R134a, R407C, R410A etc refrigerant, and it can also used for LPG.

The pumps can be also used for the recovery and perfusion of new type environment-friendly refrigerant, liquefied gas (CO2, SF6, LPG, Freon etc).

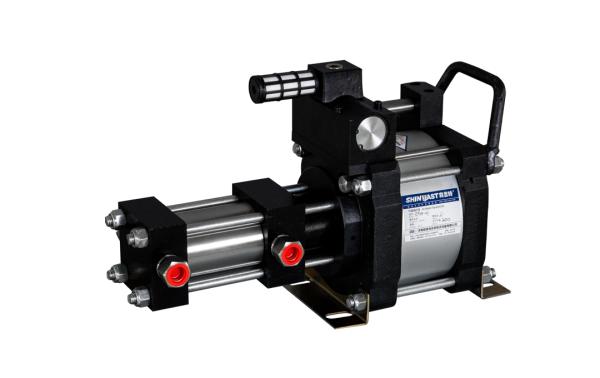

                                                   RP04-06 Air Driven Refrigerant pump

Technical parameters:

Product nameRP04-06 Air Driven Refrigerant pump
Pressure ratio6:1
Max.outlet pressure48 bar
Drive air pressure3-8 bar
Max. output flow15 litre/min
Drive air inlet connectionPT1/2’’
Gas inlet connectionNPT1/2’’
Gas outlet connectionNPT1/2’’
Air drive pressure3-8 bar
Noise<75dB
