CNG Cylinder Test Machine, Gas Cylinder Inspection Equipment

CNG Cylinder Test Equipment and Machine, Gas Cylinder Inspection Equipment

Test range:

CNG Cylinder Test Machine, Gas Cylinder Inspection Equipment is applicable to the regular inspection and evaluation of compressed natural gas cylinders, steel lined circumferential wound cylinders of different types and specifications, with the nominal working pressure of 16-25MPa and the nominal volume of 30-230L.

1. Technical parameters of natural gas cylinder:

① Outer diameter of gas cylinder: φ 219-φ426mm

② Cylinder length: 600-2000mm

③ 3 Weight of gas cylinder: ≤ 160Kg

2. Cylinder shape: form A (bottom closing), form B (concave bottom)

Performance:

1. Meet the annual inspection of gas cylinders for vehicles.

2. It is suitable for the comprehensive online inspection of gas cylinders of different specifications, and meets the requirements of relevant national regulations and standards for the inspection of natural gas cylinders.

3. The test line has a certain automatic operation ability to realize flow process, greatly improve the test efficiency and ensure the test quality

Detection process

1. Bottle registration
2. Nitrogen replacement

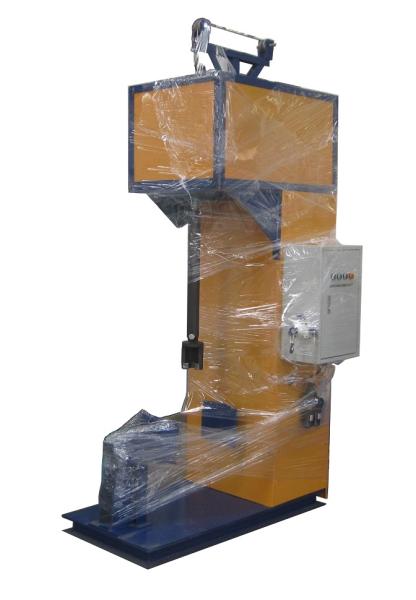

3. Unloading valve
4. Internal cleaning
5. Cleaning the outer surface of steel cylinder
6. Appearance, interior, thickness measurement

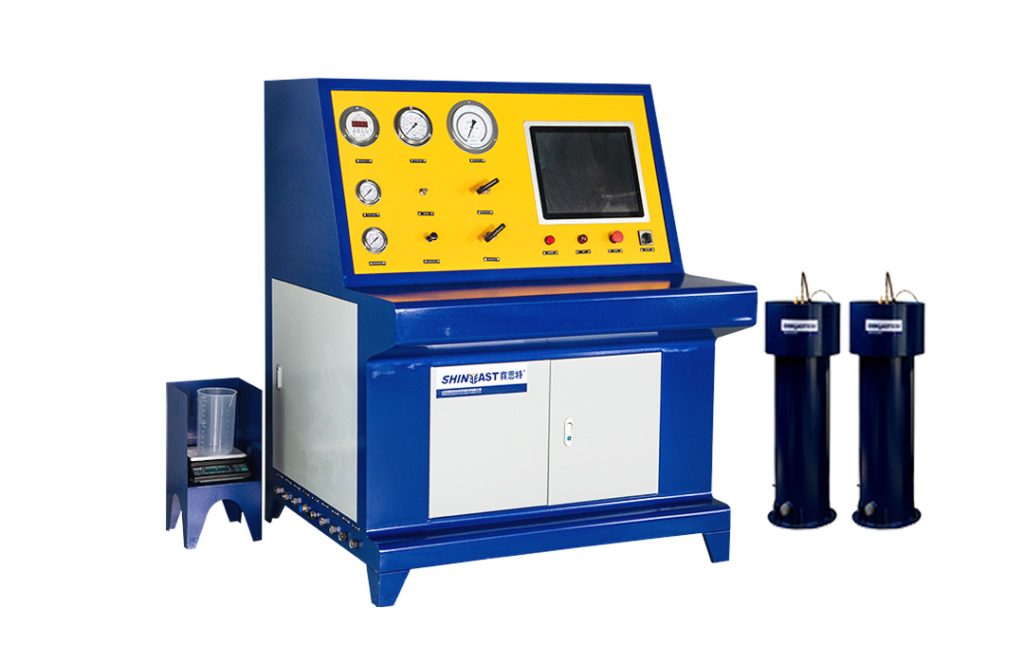

7. Hydrostatic test by external measurement method

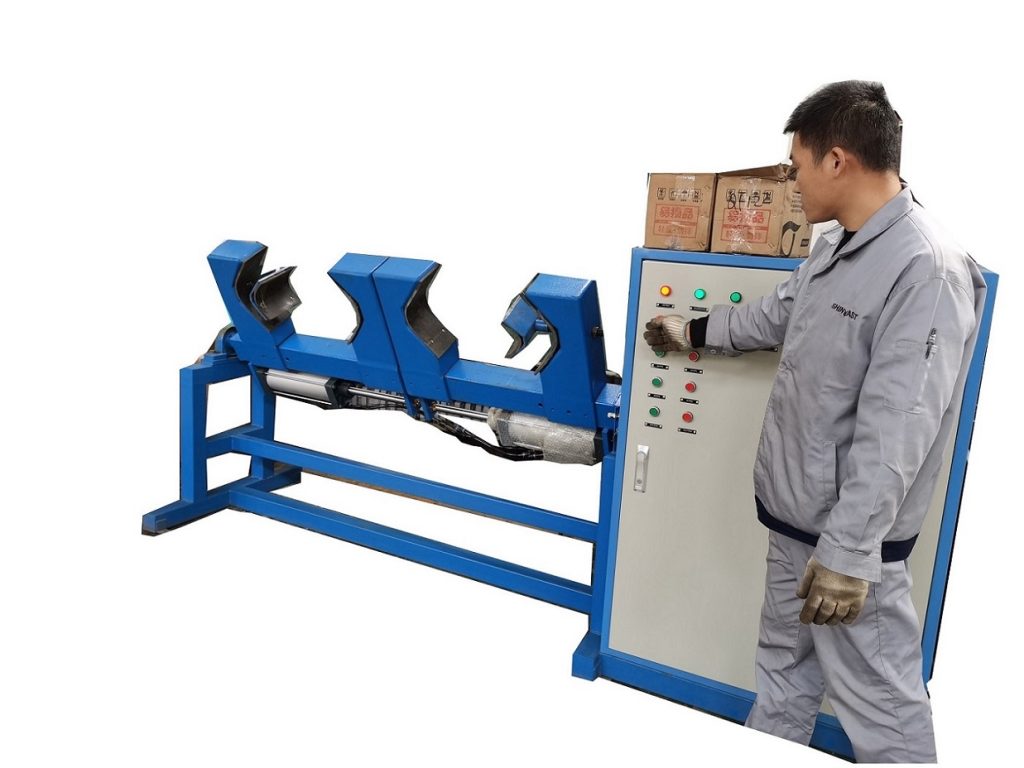

8. Pour water

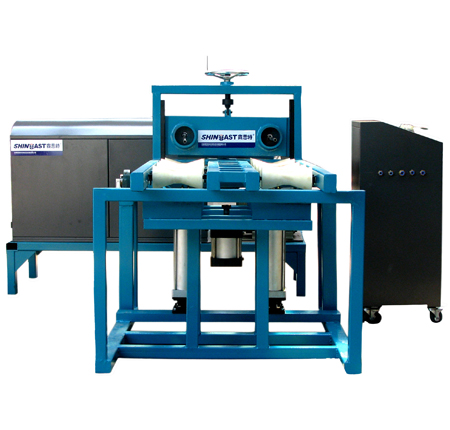

9. Dry inside

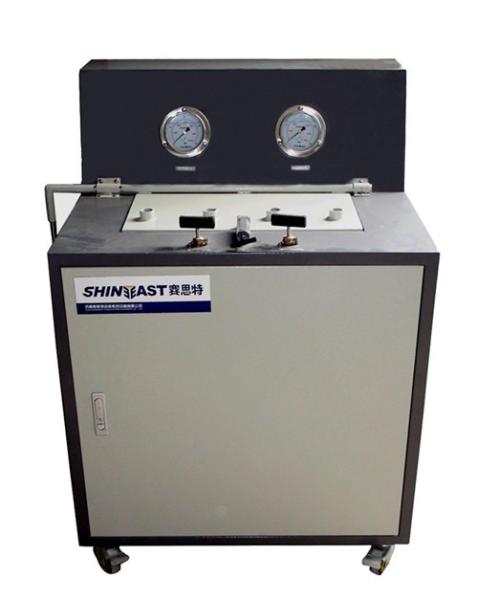

10. Bottle valve calibration
11. Bottling valve

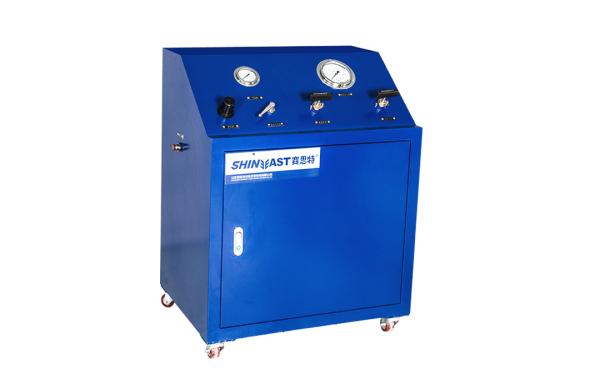

12. Air tightness test

---

---

---

---

---

---
