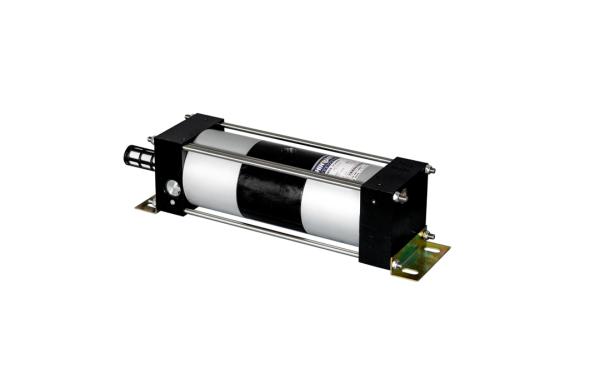

High Pressure Air Amplifiers

High Pressure Air Amplifiers

SHINEEAST air amplifiers are available in 4 sizes: MPV02, MPV04, GPV02 and GPV05. The air Amplifiers are suitable for the compression of pressurized normal shop air and are provided with a variety of application ratios. The units are capable of pressurized to twice, four times, and max. five times of the normal shop air. Provide for operating pressure up to 40 bar and flow up to 1,350L/min.

Technical parameters of MPV02 Air Amplifiers:

TypeMPV02
Pressure ratio(i)2:1
Air drive pressure(bar)3-8bar
Air drive connectionPT3/8”
Air inlet connectionNPT3/8”
Air outlet connectionNPT3/8”

Technical parameters of MPV04 Air Amplifiers:

TypeMPV04
Pressure ratio(i)4:1
Air drive pressure(bar) 3-8
Air drive connectionG3/8”
Air inlet connectionNPT1/2”
Air outlet connectionNPT1/2”

Technical Parameters of GPV02 Air Amplifiers:

TypeGPV02
Pressure ratio(i)2:1
Air drive pressure(bar)1-8
Air drive connectionPT1/2”
Air inlet connectionNPT1/2”
Air outlet connectionNPT1/2”

Technical Parameters of GPV05 Air Amplifiers:

TypeGPV05
Pressure ratio(i)5:1
Air drive pressure(bar)3-8
Air drive connectionPT1/2”
Air inlet connectionNPT1/2”
Air outlet connectionNPT1/2”
