Large Flow High Pressure Liquid Pumps for Fatigue Pressure Testing

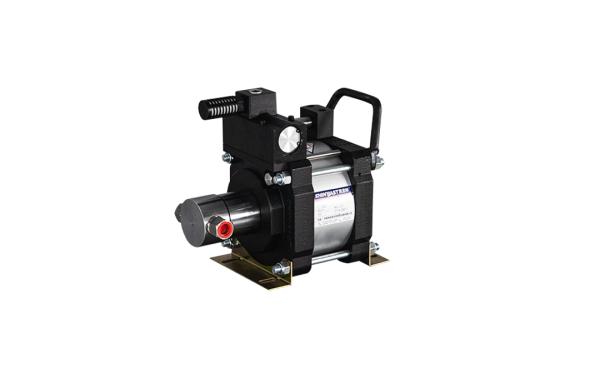

SHINEEAST G Series and GD Series High Pressure Pumps are large flow pumps, both of them are with diameter of drive plunger of 160mm.
G Series are single ating, single drive air head pumps, and GD Series are characterized by the same features as the G pumps single acting, single air drive head types, but they have less pulsations and deliver approx. 50 % more flow.
In addtion to G Series and GD Series pump, there are also G-2 Series pumps available, which are single acting, double drive air heads pumps, with diameter of drive plunger of 160mm.
Compared with the single acting single air drive head G pumps , G-2 Series pumps reach double pressure at the same air drive pressure.
Air Driven Liquid Pump-G Series
| TYPE | Pressure Ratio | MAX OutletPressure(bar)* | Air drive | ConnectionInlet A(NPT) | ConnectionOutlet B | MAX Flow(L/min)** |
| G4 | 4:1 | 32 | PT1/2 | NPT1/2 | NPT1/2 | 32.10 |
| G6 | 6:1 | 48 | PT1/2 | 1/2 | NPT1/2 | 29.91 |
| G10 | 10:1 | 80 | PT1/2 | 1/2 | NPT1/2 | 18.84 |
| G16 | 16:1 | 128 | PT1/2 | 1/2 | NPT1/2 | 12.05 |
| G28 | 28:1 | 224 | PT1/2 | 1/2 | NPT3/8 | 6.78 |
| G40 | 40:1 | 320 | PT1/2 | 1/2 | NPT3/8 | 4.71 |
| G64 | 64:1 | 512 | PT1/2 | 1/2 | NPT3/8 | 3.01 |
| G80 | 80:1 | 640 | PT1/2 | 1/2 | NPT3/8 | 2.44 |
| G100 | 100:1 | 800 | PT1/2 | 1/2 | NPT3/8 | 1.92 |
| G130 | 130:1 | 1040 | PT1/2 | 1/2 | NPT3/8 | 1.47 |
| G175 | 175:1 | 1400 | PT1/2 | 1/2 | M14X1.5 | 1.08 |
| G255 | 255:1 | 2040 | PT1/2 | 1/4 | M14X1.5 | 0.75 |
| G400 | 400:1 | 3200 | PT1/2 | 1/4 | M14X1.5 | 0.48 |
*Max. outlet pressure at an air drive of 8 bar/116 PSI
**Approximate flow at an air drive of 6 bar/87 PSI and an out pressure of 0 bar/PSI
Air Driven Liquid Pump-GD Series
Technical Data
| TYPE | Pressure Ratio | MAX OutletPressure(bar)* | ConnectionInlet A | ConnectionOutlet B | Air drive | MAX Flow(L/min)** | |
| GD4 | 4:1 | 32 | NPT1/2 | NPT1/2 | G1/2 | 54.00 | |
| GD6 | 6:1 | 48 | NPT1/2 | NPT1/2 | G1/2 | 48.60 | |
| GD10 | 10:1 | 80 | NPT1/2 | NPT1/2 | G1/2 | 30.61 | |
| GD16 | 16:1 | 128 | NPT1/2 | NPT1/2 | G1/2 | 19.73 | |
| GD28 | 28:1 | 224 | NPT1/2 | NPT1/2 | G1/2 | 11.30 | |
| GD40 | 40:1 | 320 | NPT1/2 | NPT1/2 | G1/2 | 7.69 | |
| GD64 | 64:1 | 512 | NPT1/2 | NPT3/8 | G1/2 | 4.94 | |
| GD80 | 80:1 | 640 | NPT1/2 | NPT3/8 | G1/2 | 3.96 | |
| GD100 | 100:1 | 800 | NPT1/2 | NPT3/8 | G1/2 | 3.13 | |
| GD130 | 130:1 | 1040 | NPT1/2 | NPT3/8 | G1/2 | 2.4 | |
| GD175 | 175:1 | 1400 | NPT3/8 | M14X1.5 | G1/2 | 1.81 | |
| GD255 | 255:1 | 2040 | NPT1/4 | M14X1.5 | G1/2 | 1.23 | |
| GD400 | 400:1 | 3200 | NPT1/4 | M14X1.5 | G1/2 | 0.79 |
*Max. outlet pressure at an air drive of 8 bar/116 PSI
**Approximate flow at an air drive of 6 bar/87 PSI and an out pressure of 0 bar/PSI
Air Driven Liquid Pump-G-2 Series
Technical Data
| TYPE | Pressure Ratio | MAX OutletPressure(bar)* | ConnectionInlet A | ConnectionOutlet B | Air drive | MAX Flow(L/min)** |
| G130-2 | 260：1 | 2080 | NPT1/4 | M14x1.5 | PT1/2 | 1.29 |
| G175-2 | 350：1 | 2800 | NPT1/4 | M14x1.5 | PT1/2 | 0.94 |
| G255-2 | 510：1 | 4080 | NPT1/4 | M14x1.5 | PT1/2 | 0.65 |
| G400-2 | 800:1 | 6400 | NPT1/4 | M14x1.5 | PT1/2 | 0.42 |
Drive air pressure is no more than 8 bar.
*Max. outlet pressure at an air drive of 8 bar/116 PSI **Approximate flow at an air drive of 6 bar/87 PSI and an out pressure of 0 bar/PSI
