Testing Machines for Fire Fighting Equipment

Testing Machines for Fire Fighting Equipment

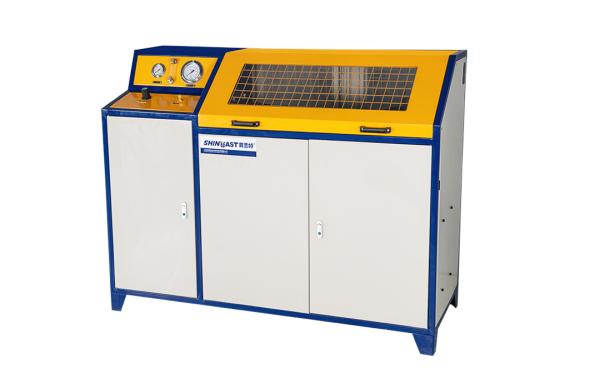

Burst Pressure and Pressure Alternation Test Equipment for Portable Fire Extinguisher is used for pressure testing, burst testing, and pressure alternation testing of water-based, dry powder, carbon dioxide and clean gas extinguishers. Air Driven liquid pump is used as the power source for pressure-holding testing and burst testing, which is controlled by computer. The pressure is stable and the burst pressure is accurately collected. Electric proportional control is adopted for pressure alternating testing, with pressure accuracy greater than 0.5% and time accuracy greater than 0.1s. The selection of proportional booster ensures the good long-term cloud turning performance of the equipment.

Reference standards

GB4351.1-2005

Technical Parameters of Portable Fire Extinguishers:

Output Pressure: 0-100MPa

Test Medium: Water

Medium temperature: normal temperature

Control mode: computer

Fire bottle type: water base, dry powder, CO2, etc.

Pressure measurement accuracy: 0.5% F.S

Pressure control accuracy: 2% F.S

Pressurizing rate: stepless adjustable

Alternating frequency: 6 times/min

Frequency of alternation: 5000 times
