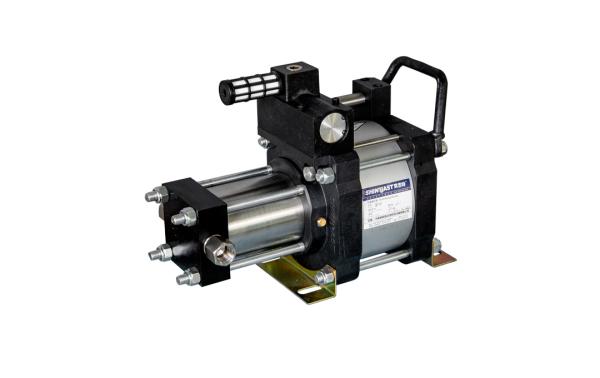

Air Driven LPG Pump for Recharge LPG Cylinder
SHINEEAST G4-FL and GD4-FL Model Air Driven LPG Pump is especially designed for pumping LPG, and charging up LPG cylinders.
Technical parameters of G4-FL LPG Pump：
| Product name | G4-FL Air Driven LPG Pump |
| Pressure ratio | 4:1 |
| Max.outlet pressure | 32 bar |
| Drive air pressure | 3-8 bar |
| Max. output flow | 7 litre/min |
| Drive air inlet connection | PT1/2’’ |
| Gas inlet connection | NPT1/2’’ |
| Gas outlet connection | NPT1/2’’ |
| Air drive pressure | 3-8 bar |
| Noise | ＜75dB |
Technical parameters of GD4-FL LPG Pump：
| Product name | GD4-FL Air Driven LPG Pump |
| Pressure ratio | 4:1 |
| Max.outlet pressure | 32 bar |
| Drive air pressure | 3-8 bar |
| Max. output flow | 15 litre/min |
| Drive air inlet connection | PT1/2’’ |
| Gas inlet connection | NPT1/2’’ |
| Gas outlet connection | NPT1/2’’ |
| Air drive pressure | 3-8 bar |
| Noise | ＜75dB |
